Cost Effective Steel Body or Matrix Body PDC Drill Bit 6 1/2" 5 Blades for Soft to Medium Rock

1 stuk
MOQ
negotiable
Prijs
Cost Effective Steel Body or Matrix Body PDC Drill Bit 6 1/2" 5 Blades for Soft to Medium Rock
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Aangepast:: Aangepast
Voordeel: Hoog efficiënt, slijtvast
Verbind draad: API of Reg of aangepast
Materiaal:: van staal of van matrix
Beschikbare maten: 3 7/8 - 26 inch
Toepasselijke industrieën: waterput, olieput en HDD
Bladgrootte: 6-12 inch
Formaties: Zachte tot middelgrote formaties
Beschikbare messen: gebaseerd op uw diameter
Basis informatie
Plaats van herkomst: China
Merknaam: Glorytek
Modelnummer: 6 en een half.
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Zeewaardig pakket
Levertijd: 20 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 4000 stuks per maand
Productomschrijving

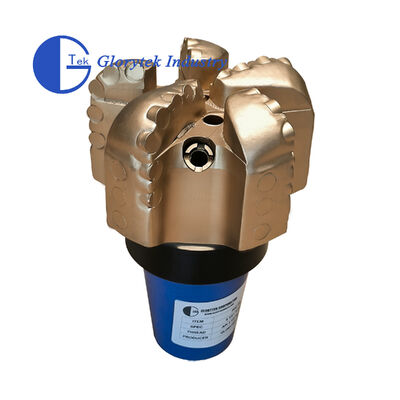

Cost Effective Steel Body or Matrix Body PDC Drill Bit 6 1/2" 5 Blades for Soft to Medium Rock
Product Overview

PDC (Polycrystalline Diamond Compact) drill bits are engineered for superior performance and durability in oil and gas drilling applications. These bits feature a synthetic diamond layer bonded to a tungsten carbide substrate, delivering exceptional hardness and wear resistance.

Compared to traditional roller cone bits, PDC bits offer higher drilling efficiency, faster penetration rates, and extended service life. The fixed-cutter design ensures stable operation with reduced vibration, resulting in improved wellbore quality. With less maintenance and fewer bit trips required, PDC bits help lower overall drilling costs and increase operational efficiency across various geological formations.

Cost Effective Steel Body or Matrix Body PDC Drill Bit 6 1/2" 5 Blades for Soft to Medium Rock 0
Technical Specifications
Bit Type 6" 8-1/2" 8-1/2" 12-1/4" Bit Type 17-1/2" GM1606T
IADC Code M423 M432 M332 M323 M432 M332 IADC Code M323
Blade 5 6 8 6 Blade 6
Cutter Size (mm) Φ13 MM Φ16 MM Φ13 MM Φ16MM Cutter Size (mm) Φ16MM;Φ13MM
Nozzle Qty/Type 5 13.2 9.6 30.78 Cutter Qty Φ16×58;Φ13×81
Nozzle Qty/Type 3NZ 6NZ 4NZ 6NZ Nozzle Qty/Type 8NZ
Gauge Length 1.5" 2.2" 2" 2.5" Gauge Length (mm) 110
Connection 3-1/2" API REG 4-1/2" API REG 4-1/2" API REG 6-5/8" API REG Connection 7-5/8" API REG
Make up Torque (KN.m) 10.4~11.4 24.1~26.5 24.1~26.5 51.7~56.9 N.W./ G.W.(KG) 338/388
Rotary Speed (rpm) 60-260 60-260 60-260 60-260 Nozzle Size (inch) 10/32
Weight on Bit (KN) 8-50 20-100 20-100 30-140 Rotary Speed (Rpm) 60-260
Max. WOB (KN) 90 130 130 180 Weight On Bit (KN) 30-200
Flow Rate (lps) 10-30 22-35 22-35 38-70 Max. WOB (KN) 240
Flow Rate (lps) 45-80
Manufacturer Profile

Glorytek Industry (Beijing) Co., Ltd, located in Beijing, China, is an integrated corporation specializing in manufacturing and exporting high-quality drilling equipment and drilling parts for decades. Our experienced team of designers and engineers ensures successful completion of all projects according to client specifications.

Our products serve diverse applications including mining, water well drilling and exploration, anchor grouting projects, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations for seaport channels, hydropower projects, and national defense projects.

Cost Effective Steel Body or Matrix Body PDC Drill Bit 6 1/2" 5 Blades for Soft to Medium Rock 1 Cost Effective Steel Body or Matrix Body PDC Drill Bit 6 1/2" 5 Blades for Soft to Medium Rock 2
After-Sales Warranty
  • Free replacement for quality-related issues
  • Timely after-sales assistance available at all times
Frequently Asked Questions
Are you original manufacturer or trading company?
We are an integrated corporation specialized in manufacturing and exporting.
Can you supply related drilling tools?
Yes, we can supply full set of drilling tools, including drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. We also provide drilling equipment like rigs, mud pumps, and air compressors.
Which payment terms can you accept?
We prefer 30% advance payment after purchase order by T/T, with 70% remaining payment before shipping by T/T. For small orders, we accept 100% advance payment after purchase order by T/T.
How is your delivery time?
Delivery time depends on your purchasing quantity. Normally we can deliver within 3-5 days.
How can you ensure the quality?
We maintain professional quality control with strict inspection and testing procedures for every order before shipping.
