GL300 /GL500 /GL800 Removable and Portable Core Drill/Drilling Rig

1
MOQ
negotiable
Prijs
GL300 /GL500 /GL800 Removable and Portable Core Drill/Drilling Rig
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Naam: GL300 draagbare kernboor-/boorinstallatie voor boordiepte van 300/200/100 m
Trefwoord: Draagbaar Diamond Core Drill Rig
Diepte: 300m
Gatdiameter: BTW, NTW, HTW
Dieselmotor: 41 kW
De Eenheid van de modderpomp: 100Lpm, 20bar
Basis informatie
Plaats van herkomst: China
Merknaam: GLORYTEK
Certificering: CE,SGE, TUV
Modelnummer: GL300
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Standaard Exportverpakking
Levertijd: 20 dagen
Betalingscondities: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Levering vermogen: 50 sets/maand
Productomschrijving

GL300 Portable Diamond Core Drill Rig For Mountain Rock Drilling



Description:

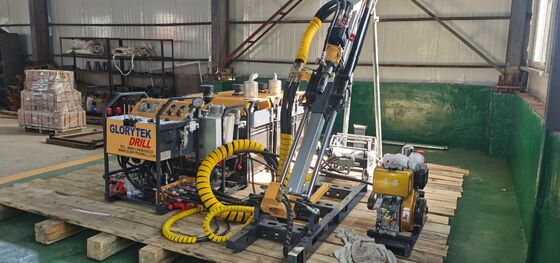

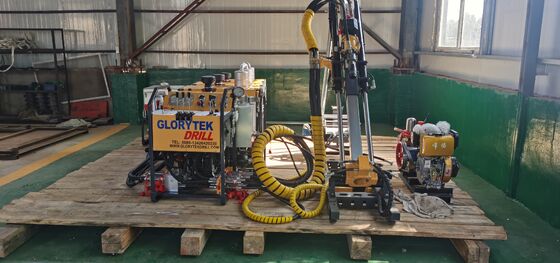

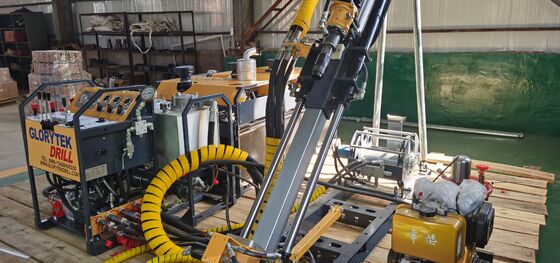

GL300 /GL500 /GL800 Removable and Portable Core Drill/Drilling Rig 0

GL300 series are representative models of portable core drilling rigs, suitable for drilling shallow and medium-deep holes.



The main structure of the lightweight core drilling rig is made of high-strength aluminum alloy material, which greatly reduces the weight of the machine while ensuring the strength and toughness. The maximum module weight is only 180Kg, which is convenient for manual handling on site.

Tehnical Parameter:



Drilling capacity BTW(60) NTW(75) HTW(95) PQ(114)
300m 200m 100m /





Dynamic System Engine Model Kubota V1505 - T / Chinese Engine
Electric Motor Model Stepless Speed Regulating Servo Motor
Rated Power 33Kw x1 / 30kw x 1
Rated Speed 3000 Rpm / 2000 Rpm
Hydraulic System Control Form Multi-pump combined flow and constant flow distribution system
System Pressure 210 Bar
Max Flow Rate 65 L/Min
Cooling Water Cooling
Hydraulic Tank Capacity 60L
Rotary System Drive Mode Full hydraulic Top Drive Power Head
Max Sped 1200 Rpm
Max Torque 800 N.m
Feed System Drilling Angle 45-90°(Can Be Customized0-90°)
Cylinder Stroke 1.83m
Lifting Power 60kn
Feed Force 30kn
Flush Pump Drive Mode Air cooled diesel engine drive
Max Output Flow 120L/Min
Max Pressure 50 Bar

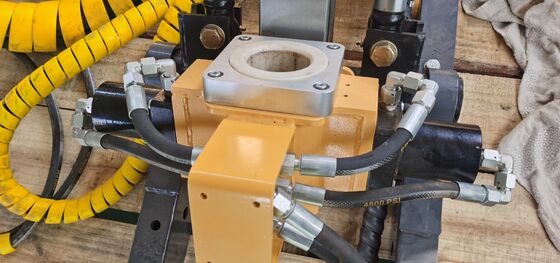

Rod Clamp Clamping Method Hydraulic Rod clamp
Drive Mode Hydraulically Open And Close
Max Through-Hole Diameter 130mm
Wire-line Hoist Drive Mode Hydraulic Motor
Rope capacity 400m/5mm
Maximum lifting force 7.5kn






Features:

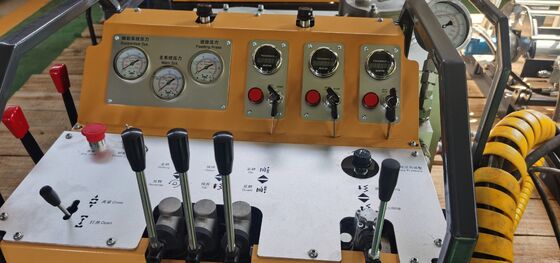

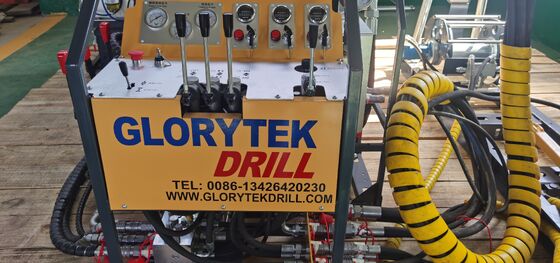

1. The portable drilling rig adopts the power system integrated control technology, and realizes the control of all engines on the console;

2. The clamp has a pressure loss protection function, which is safe, reliable, and responds quickly to prevent accidental detachment.

3. The unique adjustable sliding gap function of the power head keeps the close contact between the mast rail surface and the carriage, eliminates drilling vibration, and ensures drilling coaxiality.



Related Products



GL300 /GL500 /GL800 Removable and Portable Core Drill/Drilling Rig 1




Customer Visting

GL300 /GL500 /GL800 Removable and Portable Core Drill/Drilling Rig 2

Company Profile

GL300 /GL500 /GL800 Removable and Portable Core Drill/Drilling Rig 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
