| Belangrijkste Technische Parameters | Configuratielijst | ||

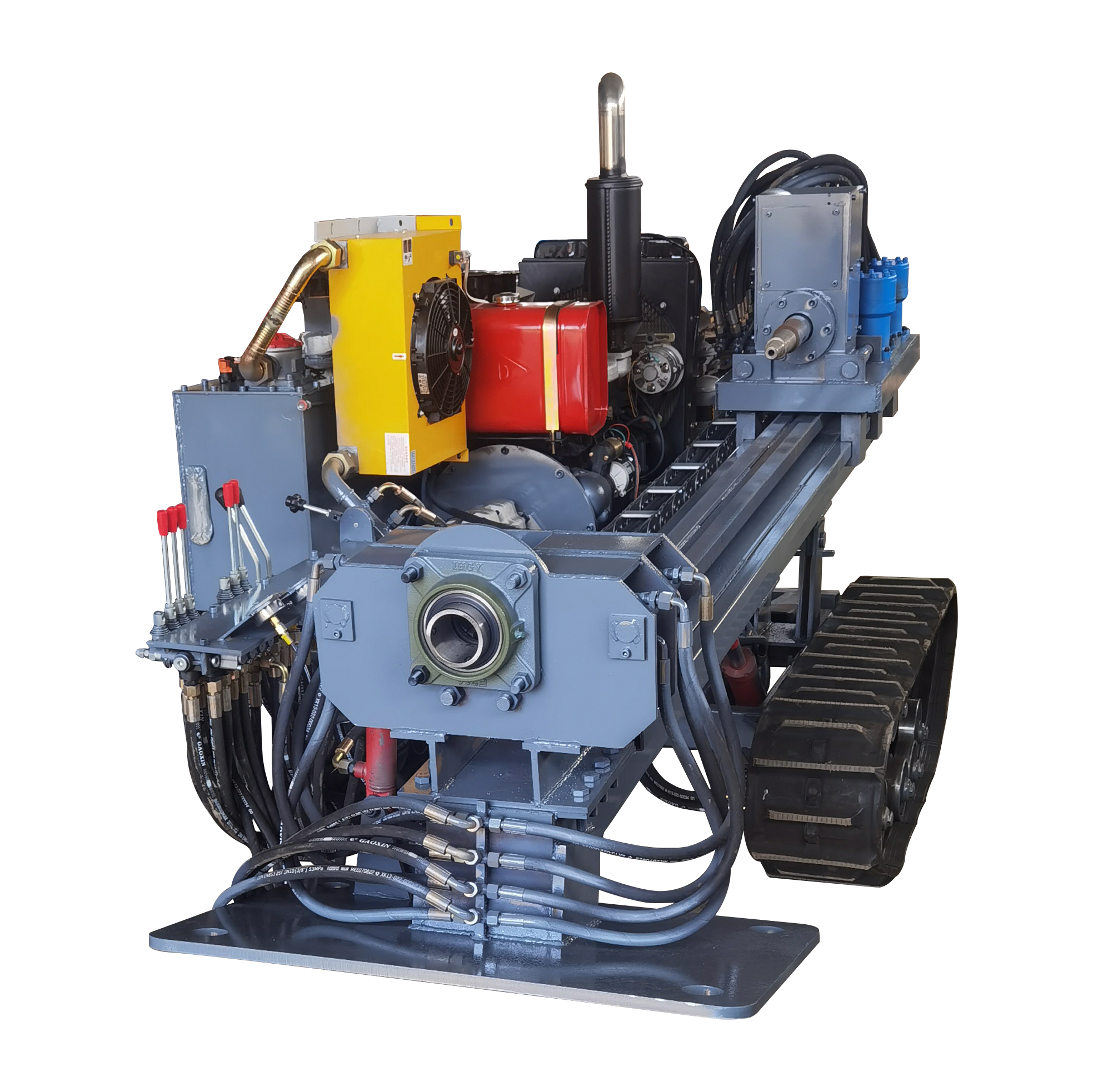

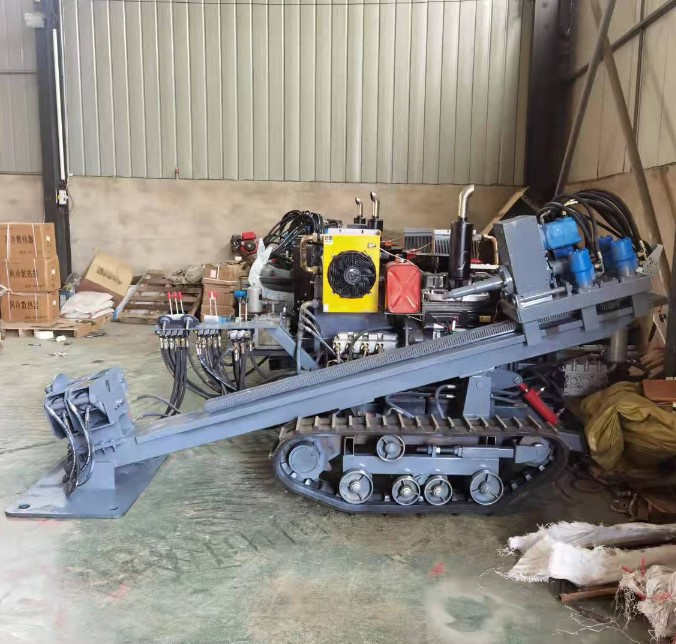

| Model: | GL-160 Mini HDD Boorinstallatie | HDD boorinstallatie (standaard configuratie) |
1 set |
| Gewicht installatie: | 2,15t | ||
| Afmetingen (L×B×H): | 3800*1600*1800mm | Transmissie- en positioneringsinstrument (optioneel) |
1 set |
| Motorvermogen: | 55kw | ||
| Max. duw- & trekkracht: | 160N.M/16TON | Pilot bit (standaard configuratie) |
1 stuk |
| Verplaatsingsvorm: | afstandsbediening | ||
| Loopsnelheid: | 2km/u | Mannelijk en vrouwelijk trekoog (standaard configuratie) |
1 set |
| Waterinjectiesysteem: | 160 type driecilinder modderpomp | ||
| Max. druk van modderpomp: | 2,8MPa | Trommelruimer (standaard configuratie) |
2 stuks |
| Max. flow van modderpomp: | 160L/min | ||
| Instelhoek: | 28° | Draaikoppeling (15T) (standaard configuratie) |
1 stuk |
| Vertrekhoek: | 20° | ||
| Klimvermogen: | 35° | Boorstang (standaard configuratie) |
2m/stuk, 50 stuks, voor 100m |
| Boorstang diameter: | 50mm | ||
| Boorstang lengte: | 2m | ||
