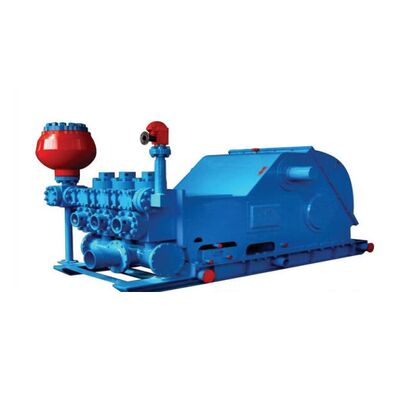

| Model | 3NB-350 |
|---|---|
| Type | Enkelwerkend Triplex |
| Ingangsvermogen | 350pk |
| Aandrijfvermogen | 6190ZC-1 (dieselmotor) / Y400-6.28KW (elektromotor) |
| Nominale Pompsnelheid | 120 Slagen/min |
| Slaglengte | 180mm |
| Overbrengingsverhouding | 4.483 |
| Nominale Ingangssnelheid | 582.8 Omw/min |
| Continue Snelheid | 540 Omw/min |
| Inlaatdiameter | 203mm |
| Uitlaatpijpdiameter | 76mm |
| Afmetingen | 3100 * 2080 * 2015 mm |
| Gewicht | 8.058 ton |
| Pompslag | Boring (mm) | |||||
|---|---|---|---|---|---|---|
| 90 | 100 | 110 | 120 | 130 | 140 | |
| 130 Slagen/min | 7.44 L/S | 9.18 L/S | 11.1 L/S | 13.23 L/S | 15.52 L/S | 18.01 L/S |
| 120 Slagen/min | 6.87 L/S | 8.48 L/S | 10.26 L/S | 12.21 L/S | 14.33 L/S | 16.62 L/S |
| 110 Slagen/min | 6.29 L/S | 7.77 L/S | 9.4 L/S | 11.19 L/S | 13.14 L/S | 15.23 L/S |
| 100 Slagen/min | 5.72 L/S | 7.06 L/S | 8.55 L/S | 10.17 L/S | 11.94 L/S | 13.84 L/S |
| Pompdruk (Mpa) | 31 | 25 | 20.8 | 17.5 | 14.9 | 12.8 |
