Thuis /Producten/Boorinstallatiemachines/GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation

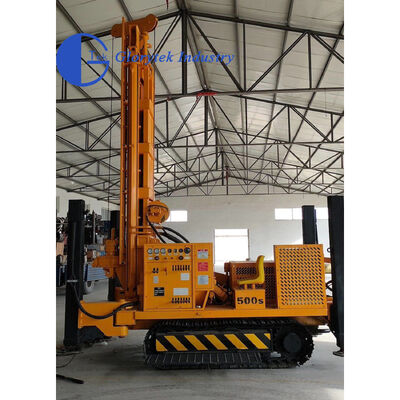

GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation

1
MOQ
negotiable
Prijs
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Naam: GL500S waterputboorinstallatie
Trefwoord: Techniek Well Drill Rig Machines
Diepte: 500M
Boordiameter: 105325mm
Luchtdruk: 1.2-3.5Mpa
Lengte staaf: 3 m, 6 m
Boorstang diam.: 89-102-114 mm
Hefkracht: 30T
De motor: 153KW
Dimensie: 5700*1900*2400mm
Markeren:

500m Depth Water Well Drilling Rig

,

153KW Diesel Engine Drill Rig Machine

,

Crawler Mounted Borehole Drilling Machine
Basis informatie
Plaats van herkomst: China
Merknaam: Glorytek
Certificering: CE
Modelnummer: GL500S
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Standaard Exportverpakking
Levertijd: 20 dagen
Betalingscondities: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Levering vermogen: 40sets/month
Productomschrijving
GL500S Water Well Drilling Rig for Agricultural Irrigation Engineering
The GL500S crawler water well drilling rig is engineered for demanding applications in geothermal drilling, industrial drilling, and agricultural irrigation projects. This versatile machine offers flexible operation compatibility with air compressors, mud pumps, and foam pumps.
Technical Specifications
Drilling Depth 500 m
Drilling Diameter 105-325 mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3.0 / 6.0 m
Rod Diameter φ89 / φ102 / φ114 mm
Main Shaft Pressure 5 T
Lifting Force 30 T
Total Swing Stroke 6.8 M
Max. Rotary Torque 15000 N.m
Max. Rotary Speed 100 r/min
Secondary Winch Lifting Force 5 T
Jacks Stroke 1.5 M
Moving Speed 2.5 km/h
Climbing Ability 21°
Weight of the Rig 10.28 T
Diesel Engine 153 KW
The Oil Pump Plunger Pump
Overall Dimensions 5700 × 1900 × 2400 MM
Working Condition Loose Layer and Bedrock
Product Gallery
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 0
Customer Visiting
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 1
Manufacturer Profile
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 2
Glorytek Industry (Beijing) Co., Ltd
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
